Technical Specifications

Physical Characteristics​

  • Dimensions: 158x98x170mm
  • Weight: 465g (including trigger and battery)
  • Battery: Removable, rechargeable, 3.7v, 2400mAh, 8.9Wh Li-Po.
  • Input Power: 5.2VDC, 4.0A
  • Material: Polycarbonate

Regulation​

  • Brasil (Anatel), Approval: 10282-21-03092 (902 - 907.5 MHz and 915 - 928 MHz)
  • EU (CE): 865 – 868 MHz
  • NA (FCC): 902 – 928 MHz
  • Australia: 920.25 - 925.75 MHz

Environmental​

  • Operating temperature: -10°C to 50°C
  • Protection: IP54.

Communication​

  • Bluetooth: Version 4.2
  • Bluetooth frequency: 2.4 - 2.4835 GHz
  • Bluetooth profiles: SPP, HID, Apple iAP2, BLE.
  • Bluetooth distance: Up to 100 meters (in open field, without obstacles)
  • USB direct: Direct USB connection through support ePop-Loq(separated purchase)

RFID Reading​

  • Frequency: 902Mhz to 928Mhz
  • Supported Protocols:
    • EPC Class 1 GEN2
  • Reading distance: 0~8m (Environment and tag model can influence the distance)
    • 8 meters of distance with tag Dogbone chip Impinj M750 and 30dbm power.
  • Antenna gain: 4dBic (Circular)
  • Signal Field: 150° Directional forward.
  • Maximum output power: Until 30dBm.

Barcode Reader​

  • Field of view:
    • Horizontal: 44.5°
    • Vertical: 35.5°
  • Supported codes:
    • 1D: All main codes.
    • 2D: PDF417, MicroPDF417, Composite, RSS, TLC39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode
    • Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX).

Accessories and Peripheral​

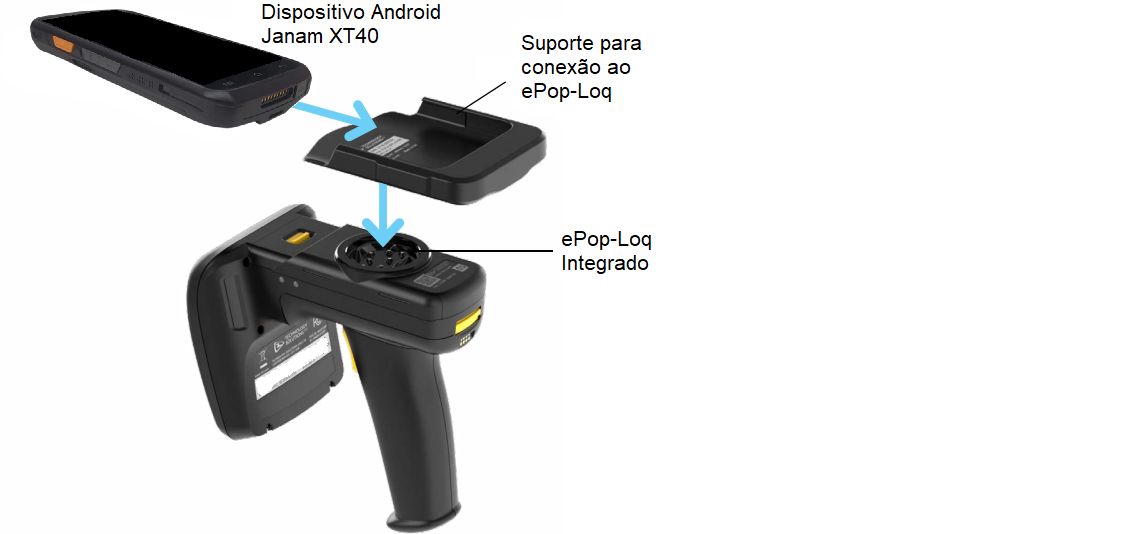

Janam XT40 (separated purchase)​

The Android device Janam XT40 follows the ePop-Loq® support for direct serial connection with the TSL-2128P reader.

Specifications

  • Technical:

    • Operating system: Android 13 GMS
    • Processor: Snapdragon 680 SM6225 2.4GHz Octa-core
    • Storage: eMMC Flash 64GB / 4GB LPDDR4 RAM
    • Expansion: SD card slot with support SDXC (up to 512GB)
    • Input Power: Battery Li-on rechargeable 4500 mAh (3.8v)

  • Physical:

    • Dimensions: 152x76x18mm
    • Weight: 280g
    • Screen: 5.0" Gorila Glass 3

  • Environment:

    • Operating temperature: -20° to 60°C
    • Protection: IP65

  • Data capture

    • Scanner 1D/2D: Honeywell N5703
    • RFID/NFC on frequency 13,56MHz:
      • ISO14443 Type A
      • ISO14443 Type B
      • ISO15693
      • MIFARE® 1k/4k/Plus/UltraLight/ DESFire
      • Sony FeliCa
    • Camera:
      • Rear: 13MP
      • Frontal: 5MP

  • Connectivity:

    • USB: USB 2.0 Type-C
    • WWAN:
      • TD-LTE: B34/B38/B39/B40/B41
      • FDD-LTE: B1/2/3/4/5/7/8/12/13/17/19/20/B25/
      • B26/B28A/B28B/B66
      • WCDMA: B1/B2/B4/B5/B8
      • TD-SCDMA: B34/39
      • GSM/EDGE/GPRS: 850/900/1800/1900
      • CDMA 2000 EVDO/CDMA 1x (800Mhz)
    • WLAN:
      • 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w
      • 2.4GHz/5GHz Dual-Band
    • Security: WEP, WPA/WPA2 (TKIP e AES), WPA3 (SAE), WPA3 (GCMP-256)
    • WPAN: Bluetooth v5.1
    • GPS: A-GPS, BeiDou, GLONASS, Galileo.

  • Regulation:

    • Anatel: 05963-24-15720
important

The reader follows the development software kit, click below to access.

Support materials

Warranty​

  • Full 1 year warranty for manufacturing defects in operation.

Lifespan​

  • Considering that the equipment has not been subjected to impacts, falls or incorrect handling, it has an approximate useful life of 5 years indoors and 3 years outdoors (with exposure to sun, rain, heat and humidity, unless the necessary protections are provided).

Dispose and Recycle​

  • The product is made of aluminum parts, ABS plastic and electronic components containing silicon. Most of these materials are recyclable and can be reused. In the case of disposal, we strongly recommend that you do not throw it in the residential trash, on the contrary, send us the material with the proper identification of MATERIAL FOR DISPOSAL that we will make the correct forwarding for each type of material that can be recycled.
