Introduction

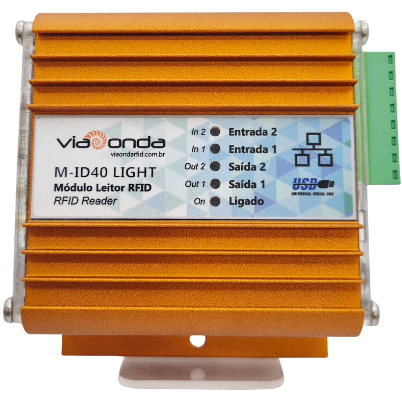

The M-ID40 - Light module is a compact, high-performance UHF (Ultra High Frequency) RFID reader, designed for efficient reading and writing of RFID tags within the frequency ranges of 902 to 907 MHz and 915.10 to 928 MHz. It features characteristics and functionalities that allow its use in a wide variety of projects, such as access control for people and vehicles, and automatic control of entries and exits in rooms or storage areas.
Main Features
The M-ID40 - Light is a UHF RFID management and reading module that operates within the frequency ranges established by Anatel, which are 902 to 907 MHz and 915.1 to 928 MHz. It supports WiFi communication, providing greater flexibility for applications across various needs, such as:
- Vehicle and pedestrian access control;
- Inventory management and tracking of incoming and outgoing items;
- Hospital linen and hotel laundry management;
- Collision prevention for cargo transport vehicles;
- Pedestrian safety against vehicle accidents;
- Product and equipment inventory with efficiency and practicality;
It can operate autonomously by triggering one (or more) of its 4 digital outputs according to the configuration, which can be set through an HTML page accessible from any browser, including mobile devices.
It can also operate as an intermediary for commands processed and sent by the Viaonda Management Software.
It is also possible to configure radio frequency parameters such as: power (up to 31 dBm), automatic or manual antenna detection, TAG reading filter, reading interval, and selection of the TAG memory to be read (TID, EPC, or User Memory).
This equipment is not entitled to protection against harmful interference and must not cause interference to properly authorized systems.
For more information, please refer to the ANATEL website - www.anatel.gov.br
