IRONSIDE CLASSIC

Tag Ironside Classic​


Tag specially designed for use in outdoor environments and metal surfaces. It is composed of robust protection, allowing it to be applicable in industrial environments or with large vehicles.

Technical Characteristics​

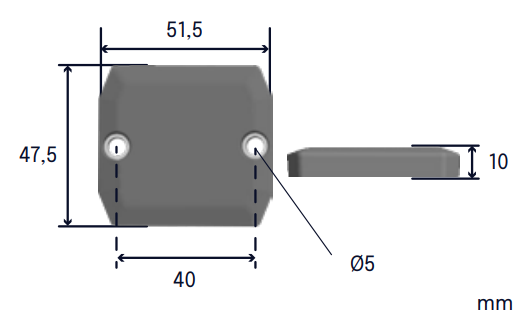

  • Dimensions (LxWxH): 51.5 x 47.5 x 10mm
  • Chip: Impinj M780
  • Operating frequency: Global (865-928 MHz)
  • TID: Not changeable.
  • EPC: 496 bits.
  • Data retention: 50 years.
  • Rewrites: 100.000.
  • Protection: IP68
  • Operating temperature: -40°C to +85°C.
  • Without physical or performance changes in chemical tests:
    • 168 hours on display of motor oil.
    • 168 hours on display of salt water (salinity 10%).
    • 168 hours on display of sulfuric acid (10%, pH 2).
    • 24 Hours in sodium hydroxide (NaOH) (10%, pH 13).


MaterialReading distance
img Metal9m
img Wood5m
img Plastic5m
img Paper5m
img Organic4m
img Glass5m

Tests performed with ViaondaRFID M-ID40 reader + 7.5dBic Antenna + 2 meter 50ohm cable

Warranty​

  • Full 1 year warranty for manufacturing defects.

Lifespan​

  • Considering that the tag has not been subjected to impacts, falls or incorrect handling, it has an indefinite useful life, as long as it is used for the purpose for which each model was designed.

Dispose and Recycle​

  • The tags are made of plastic material, paper, adhesive (water-based or solvent-based), microchip and aluminum inlay (antenna). These materials are recyclable and can be delivered to any collection point (Ecoponto) or delivered to recycling companies and cooperatives. If there is no Ecopoint near you, you can send us the material with the proper identification of MATERIAL FOR DISPOSAL and we will send it correctly for each type of material that can be recycled.
